| Rated Power | 1 kW |
|---|---|
| Rotor Diameter | W = 3m |
| Rotor Height | H = 1.7 m |
| Turbine Weight | 300 kg |
| Start-up Speed | 1.5 m/s |
| Rated Wind Speed | 10 m/s |
| Storm Mode | 14 – 24 m/s |
| Survival Wind Speed | 40 m/s |
| Rotation Speed Max | 80 rpm |
| Sound Level | Under 20 dB at 10 m |
| Generator | Permanent Magnetic |
| Temperature Range | -25°C to +70°C |
| Voltage | 48 V DC battery charging, and 220 V AC consumer |
| Warranty | Standard 3 Years |
| Maximum Output Power | 1.3 kW |
SAFETY MOD / OVER SPEED PROTECTION:
the blade control mechanism adjusts the blades angle in a non-optimal situation to prevent from
over speeding.
WIND DIRECTION:
Omnidirectional, AI based optimization system for blade adjustment and maximum output.

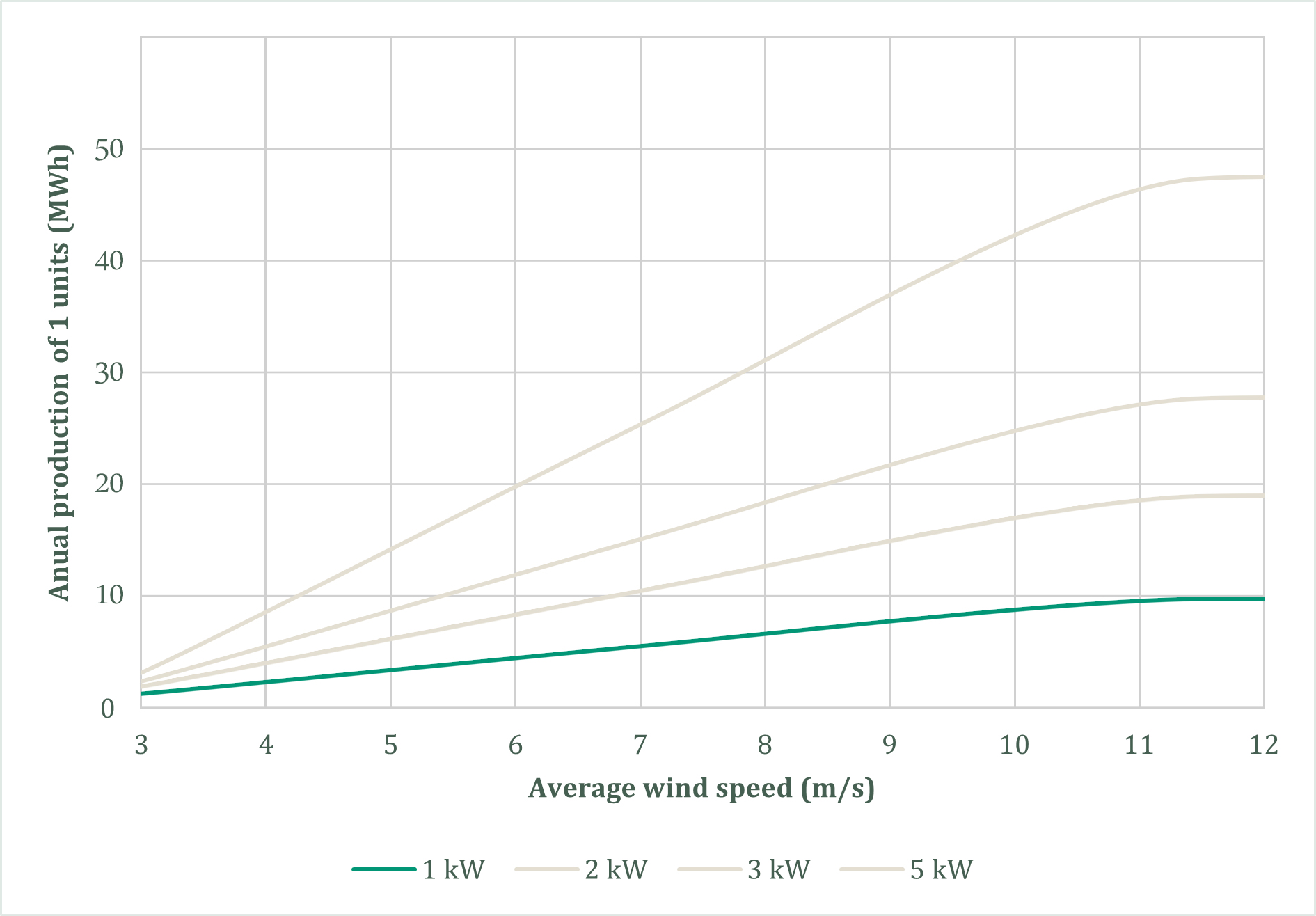

POWER CURVE:
Sample Use Case:
The Amertate-1000 is ideal for eco-friendly tourism cabins, 5G internet transmitters, public lighting systems, and remote data collection stations. It delivers efficient, quiet, and sustainable power, even in low-wind conditions, making it perfect for off-grid and environmentally conscious applications.
